SIDE-POWER® by Sleipner Motor - SE30/125S Elica di manovra a Tunnel 12V
SE30 Elica di manovra a Tunnel 12V 30kg di spinta |
Item code: EAN: |
Thrust at 10,5/21V* (kg) | 30 |
Thrust at 12/24V* (kg) | 40 |
Typical boat size (ft • m) | 20’ - 28’ • 6 - 8.5 |

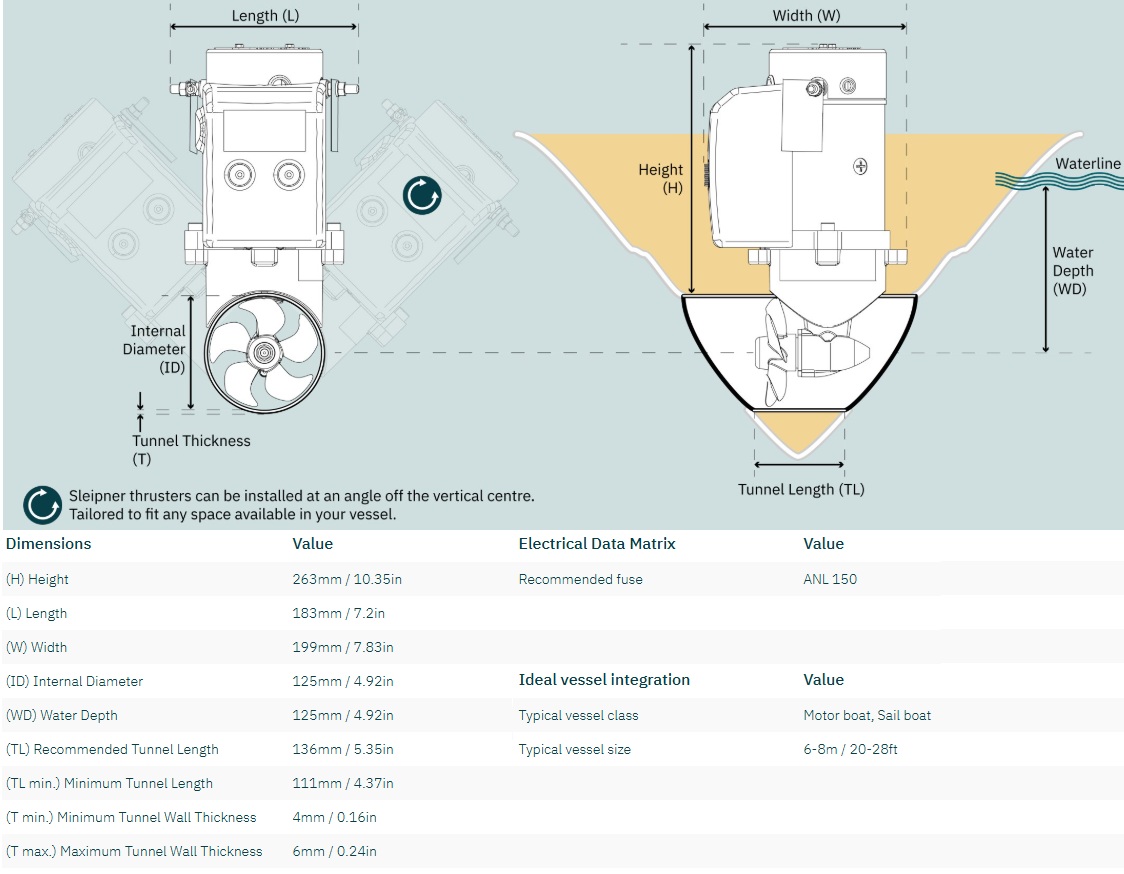

Tunnel I.D. (mm) | 125 |
Propulsion | Single |
Power at 10,5/21V* (kW • Hp) | 1.5 • 2 |
For DC system (V) | 12 |
Weight (kg) | 9.5 |
Min. Batt. Capacity (CCA**12/24V) | 200 |
Control system | Analog |
Scarica documento |
SIDE-POWER® by Sleipner Motor - Esploso, part list SE30/125S. pdf (198.63 KB)
|
ESPLOSI |
Scarica documento |
SIDE-POWER® by Sleipner Motor - Manuale d'Installazione SE20/25-110S e SE30/40-125S2. pdf (1.94 MB)
|
ESPLOSI |
Scarica documento |
SIDE-POWER® by Sleipner Motor - Manuale SE30/125S - SE40/125S - SE60/185S. pdf (2.26 MB)
|
ESPLOSI |
# | Description | Product |
1 | Propeller | 3 1261 |
2 | Propeller washer | 3 1365 |
3 | Locknut | 3 1250 |
4 | Anode | 3 1180 A |
5 | Gasket | 3 1310 10 |
6 | Gearleg bolt | 3 1080 |
7 | Complete gearleg | 3 0601 |
8 | Complete motor bracket | 3 0501 |
9 | Brushes for motor (kit)** | ** |
10 | Brush springs for motor (kit)** | ** |
11 | Electric motor | N/A |
12 | Retaining ring | 3 1143 |
13 | Key for eletric motor shaft | 3 2050 |
14 | Solenoid bracket kit | 2 0135 |
15 | Electronic control box | 6 1232 I |
16 | Internal wiring loom | 6 1200 B |
17 | Solenoid | 41571123 |
18 | Complete solenoid kit | 2 0131 12 |
19 | Solenoid Cover | 3 2024 |
20 | Nut for solenoid cover | 6 8810 |
21 | Complete electric motor assembly | 2 0101 12 |
22 | Temp switch* | * |
#1 - Staffa motore art.: SM-126592
Motorbracket Item code: SM-126592
#2 - Piede art.: 3 0601
Gearleg Item code: 3 0601
#3 - Giunto flessibile art.: SM175029
Flexible coupling Item code: SM175029
#4 - Motore elettrico art.: 2 0101 12
Electric motor Item code: 2 0105 12
|
#1 - Supporto motore per SE30/40
Motor bracket for SE30/40
#2 - Piastra del supporto art.: 3 1241
Support plate Item code: 3 1241
#3 - Dima art.: 3 1856
Measurement template Item code: 3 1856
#4 - Bullone 6 1360 DIN 912 - M8 x 30 (A2)
Bolt 6 1360 DIN 912 - M8 x 30 (A2)
#5 - Etichetta Supporto Motore 4 8570
4 8570 - Label motor bracket
|
#1 - Motore elettrico - Electric motor
#2 - Kit solenoide completo art.:
Complete solenoid kit Item code:
#2b - Solenoide con staffa art.:41571122
#2c - Solenoide art.:4 1571 12
#2d - Controllo Elettronico art.:6 1232 i
#2e - Staffa Solenoide art. 2 0135
#3 - Kit coperchio solenoide SE20-30 art.: SM168196
Solenoid cover kit SE20-30 Item code: SM168196
#4 - Spazzole per motore (kit)
Brushes for motor (kit)
#5 - Molla spazzole per motore (kit)
Brushes spring for motor (kit)
# 6 - Interruttore termico - Temp switch
|
#1 - Elica art.: 3 1261
Propeller Item code:
#2 - Piede senza elica art.: 2 0600-U
Gearleg w/out propeller Item code: 3 0601-U
|
#1 - Piede art.: 311103 - SE30-40
Gearleg 311103 - SE30-40
#2 - Guarnizione Codice articolo: 3 1310 10
Gasket Item code: 3 1310 10
#3 - 3 1250 DIN 985 - M8x1,25 (A4)
#4 - 208125 DIN 125 - A 8,4 (A4)
#5 - 3 1080 DIN 6912 - M8 x 40 (A4)
#6 - Kit anodo Codice articolo: 3 1180 A
Bullone DIN 912 - M5 x 12 (A4)
Anode Kit Item code: 3 1180 A
|
